Packaging

We make a diverse array of packaging ranging from blow-moulded drums and injection-moulded pails to ABHIMAX welded drums. We supply to all leading lubricants, paints, construction chemicals and other chemicals companies in the country.

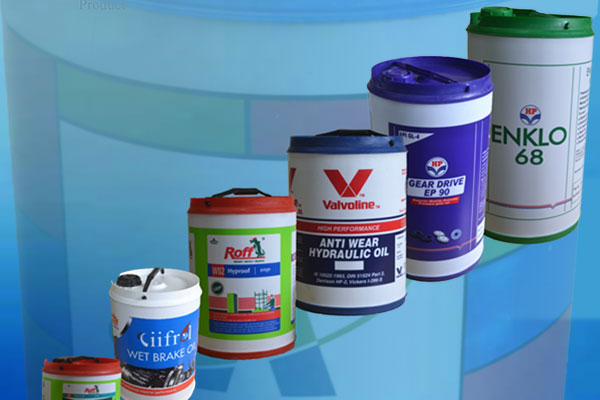

Abhimax


Extruded - Cum Welded Drum


Abhimax drums are 3-piece extruded-cum-welded HDPE drums with “Tri-Care” Caps manufactured in the latest state-of-the-art plant . Abhimax drums are available in various capacities ranging from 10 Ltrs. upto 27 Ltrs. as per customer requirements.


FEATURES

  • Light weight
  • Easy Handling because of convenient lift handle
  • Cost effective
  • Pilfer Proof and leak-proof “Tri-Care” Caps
  • Venting & Degassing caps available
  • Fitment for Measuring cup available in the cap
  • Stackable with or without Pallets
  • Manufactured using food grade approved raw material
  • Attractive “4-colour Screen printing” for giving added market presence to the Product

Specifications




Size Ltrs.

Body Dia. 2mm +/-

Max Drum Dia. +/- 2mm

Body Height +/-1mm

Overall Height +/- 2mm

Wall Thickness mm

Body Weight Gms. +/- 10

Top Weight Gms. +/- 2

Bottom Weight Gms. +/- 2

Pilfer Proof Cap Weight Gms. +/- 2

Handle Weight Gms. +/- 2

Gross Weight Including Shrink Sleeve & Dust Cap Gms.+/- 10

Print Area(800 mm X Upto mm Max)

Overflow Capacity Ltrs.

Stack Height
10 284 288 168 226 1.5 205 180 128 22 22 570 118 11.50 1+7
12.5 284 288 210 268 1.5 250 180 128 22 22 615 160 14.00 1+6
15 284 288 251 309 1.5 298 180 128 22 22 665 201 16.70 1+5
20 284 288 338 396 1.5 406 180 128 22 22 775 288 22.50 1+4
25 284 288 363 421 1.8 611 180 128 22 22 985 313 27.00 1+3
27 284 288 414 472 1.9 743 180 128 22 22 1120 364 29.00 1+2

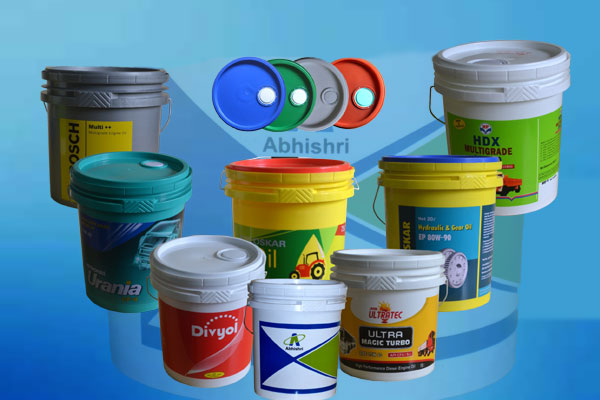

Abhi Pail


Polypropylene Pails


Abhipail are Polypropylene Pails with "Tri-Care" Locking Lids with and without pull-out Spout or Tinting caps manufactured on latest Microprocessor controlled Injection Moulding Machines, using 100% Virgin High Impact Polypropylene Copolymer Resins (COPP) for various applications suitable for packaging liquids , gels , powders and granules . These pails are widely used in packaging of Paints , Lubricants, Greases , Printing Inks, Adhesives, Coatings, Chemicals, food products as well as Agro Inputs .


FEATURES

  • Light weight
  • Spout for Lubricating oils
  • Tinting Caps provision for Paints
  • Pilfer Proof and leak-proof “Tri-Care” Lids
  • Stackable with or without Pallets
  • Manufactured using food grade approved raw material
  • Various Decoration available such as
    • 6-colour Screen Printing
    • 8-Colour Heat Transfer Labels
    • Shrink Sleeving

RANGE


  • LUBRICANT PAILS : 6 Ltrs. , 7.5 Ltrs. , 10 Ltrs., 15 ltrs., 20 ltrs.
  • PAINT PAILS ( Kilogram Packs ): 1 Kg., 2 Kgs., 5 Kgs., 10 Kgs., 20 Kgs.
  • PAINT PAILS ( Litres Packs ) : 1 Ltr., 4 Ltrs., 10 Ltrs., 20 Ltrs.

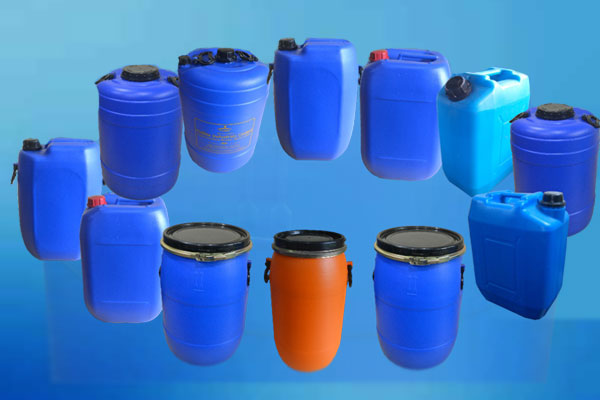

Abhiblow


BLOW- MOULDED HDPE DRUMS & CARBUOYS


AbhiBlow drums & carbuoys are made from 100% Virgin High Impact Resistant Polyethylene and are available in a wide range from 20 Ltrs. nominal capacity to 120 Ltrs. nominal capacity in Narrow-mouth as well as Open-top configurations. The advantages of using AbhiBlow containers are many.


FEATURES

  • Zero leakage screw-down “Tri-Care” caps with tamper evident seals
  • Stackable with or without Pallets
  • Designed for maximum loading in shipping containers
  • Venting & degassing caps available
  • Manufactured using food grade approved raw material
  • Available in various capacities to suit customer’s requirement

Specifications




Narrow Mouth Drums CAPACITY (Ltrs.)

WIDTH x LENGTH(mm)

Height(mm)

Mouth (mm)

Volume(Ltrs.) Nominal Brimful

GROSS WT. KGS.
20 245X275 400 44 20 21.5 1.5/1.7
22 260X275 395 44 22 23 1.5/1.7
25 260X280 480 44 25 28 1.5/1.8
30 280 x 325 435 44 30 32 1.7/1.8/2.0
35 285 x 320 475 44 35 37 1.7/1.8/2.0
35(Jerrycan) 250 x 390 495 48 35 38 1.7/1.8/2.0
50 (Rocket) 335 x 385 575 48 50 54 2.5/2.8/3.0
55(Rocket) 335 x 440 550 48 55 57 2.5/2.8/3.0



Open Top Drums CAPACITY (Ltrs.)

Dia.(mm)

Height (mm)

Mouth

Volume(Ltrs.) Nominal Brimful

GROSS WT. KGS.
25 320 425 250 25 26.5 1.8
30 350 520 250 30 32 1.8
40 350 590 250 40 42 2.0
50 385 560 315 50 53 2.5/2.7/2.8
55 395 595 315 55 57 2.5/2.7/2.8
100 475 755 385 100 108 5.5/5.8/6.0
120 475 825 385 120 124 5.8/6.0/6.5
